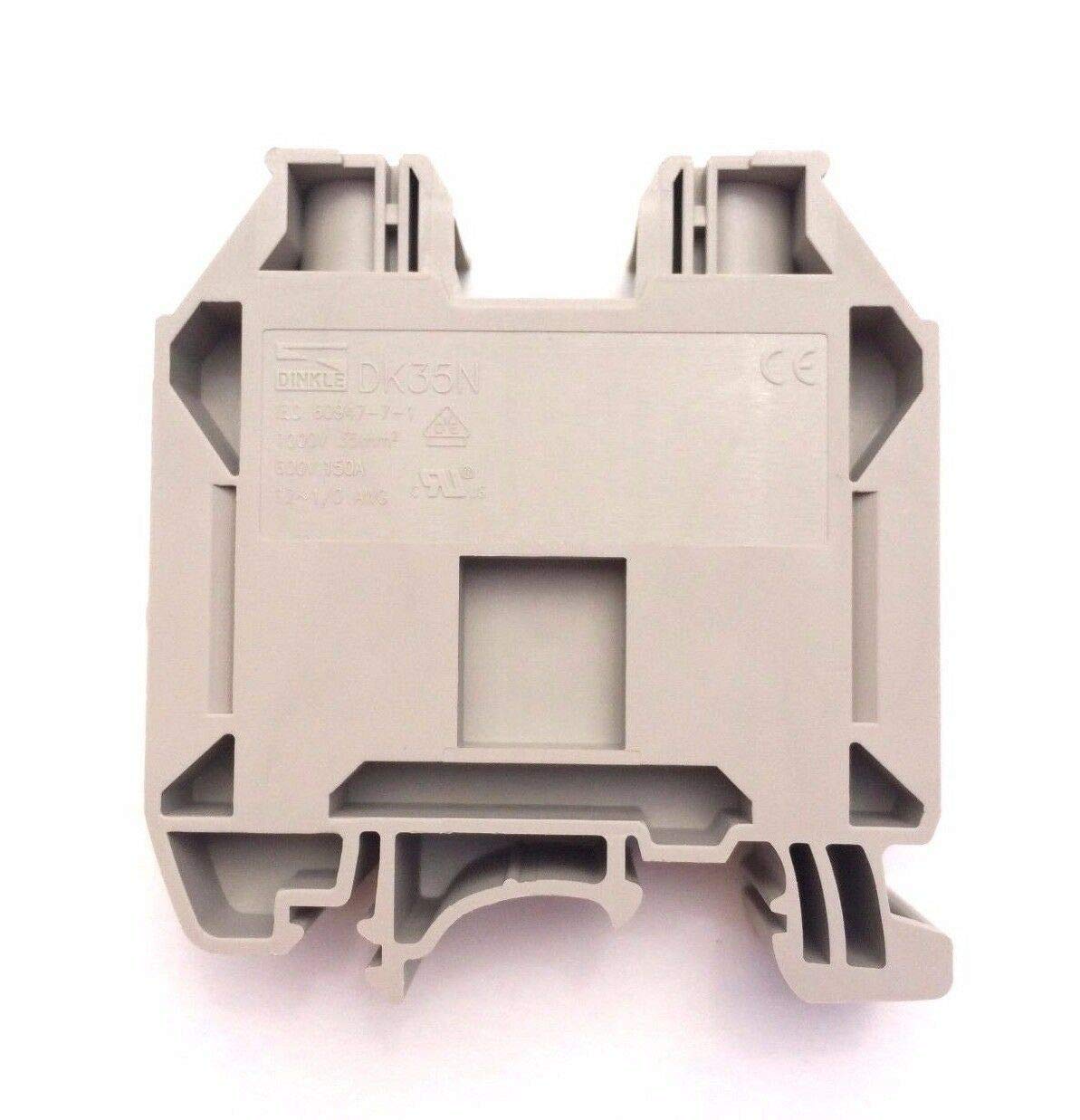

Dinkle DK35N DIN Rail Terminal Block Screw Type UL 600V 150A 1/0-12AWG, Pack of 5
4.6 (116 items)
Limited Time SaleUS$17.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218152692 | Release Date | 2026/05/03 | List Price | US$12.00 | Model Number | 218152692 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Dinkle DK35N has a compact design that saves wiring space. The high reliability and robust design adapts vibration and harsh thermal variation to prevent terminal connection fault. Rated voltage: UL 600V, IEC 1,000 V. Rated current: UL 150A, IEC 125A. Conductor cross-section, solid(AWG/mm2): UL 12-1/0, IEC 1.5-35. Conductor cross-section, flexible(AWG/mm2): UL 12-1/0, IEC 1.5-35. Rated impulse withstand voltage: 8KV. Torque(N-m): 6.9. Screw: M6. Wire strip length: 14-16mm. Insulating material: PA. TxHxW(mm): 16 x 59 x 55.4. Jumper DSS35N-02P. Available accessories: Marking label TM49W.
- UL 600V
- UL 1/0-12AWG
- UL 150A
| UPC | 737123111589 |
|---|---|
| Color | Beige |
| Gauge | 12.0 |
| Model | DK35N(5) |
| Pitch | 16 Millimeters |
| Voltage | 600 Volts |
| Brand Name | International Connector |
| Unit Count | 5.0 Count |
| Part Number | DK35N(5) |
| Manufacturer | Dinkle |
| Material Type | Copper |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 150 Amps |
| Number Of Poles | 5 |
| Centerline Length | 16 Millimeters |
| Specification Met | IEC, UL, cUL |
| Number Of Contacts | 10 |
| Included Components | Terminal Blocks |
| Number of Positions | 6 |
| Item Dimensions W x H | 2.18"W x 2.18"H |
| Upper Temperature Rating | 70 Degrees Celsius |
